Oyan TR
Modern Recessed Spotlight
Oyan TR QR Code

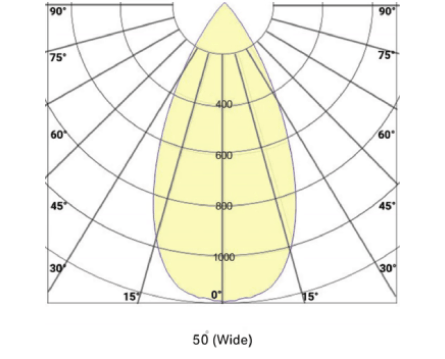

Light Distribution

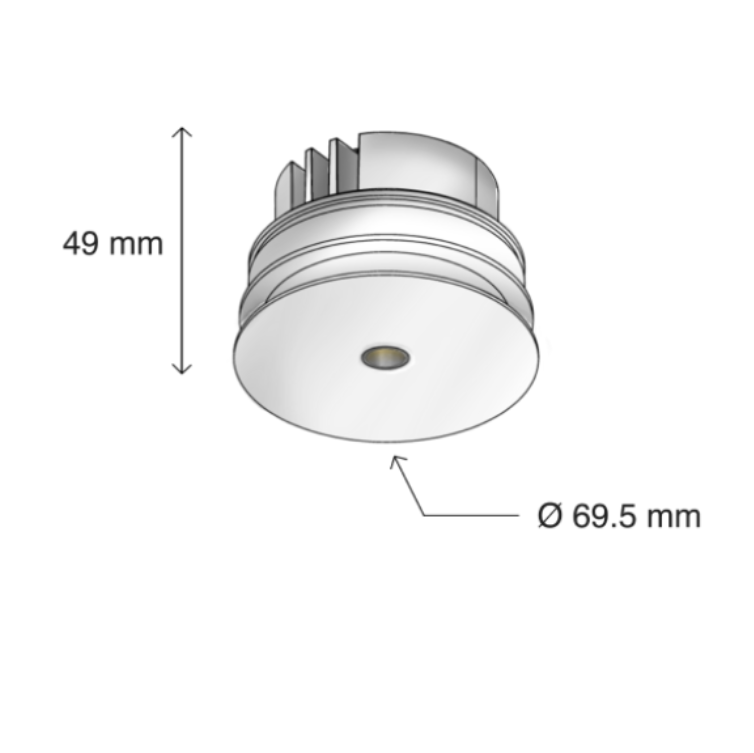

Dimensions
An advanced optic makes a focal point below the lens and light is widened afterward
3D view
Oyan TR
KEY TECHNICAL DATA
FAMILY ORDER CODE: F172
LIGHT SOURCE: LED
POWER RANGE: 9 W
SUPPLY VOLTAGE: 220-240 VAC,50 HZ
DRIVER: DALI | DIMMABLE VERSION AVAILABLE UPON REQUEST
RECOMMENDED APPLICATIONS: RESIDENTIAL | OFFICE | SHOP
Product Description
| ORDER CODE | POWER (W) | CCT(K) | BEAM ANGLE | BODY COLOR |
|---|---|---|---|---|
| F172W930M | 9 W | 3000K | Medium | White |
| F172W930W | 9 W | 3000K | Wide | White |
| F172B930M | 9 W | 3000K | Medium | Black |
| F172B930W | 9 W | 3000K | Wide | Black |
| F172W940M | 9 W | 4000K | Medium | White |
| F172W940W | 9 W | 4000K | Wide | White |
| F172B940M | 9 W | 4000K | Medium | Black |
| F172B940W | 9 W | 4000K | Wide | Black |
